Output force: 55 kN
Stroke: 1/2" (13 mm)
Autonomy: 180 to 450 crimping operations with battery 4.0 Ah
Cycle time: 2 to 5s depending on the section.
Dimensions: 13.78 x 12.41 x 2.84 in (350 x 315 x 72 mm)
Weight: 9.48 lbs (including the battery)
Type of tubular lugs and butt connectors
|Copper lugs & butt connectors CT series||12 - 300 MCM||4 - 150|
|Copper lugs & butt connectors DE/CU series||10 - 300 MCM||6 - 150|
|Copper lugs & butt connectors DIN 46235/46267||8 - 0000 (4/0)||10 - 120|
|"C" tap-off connectors||'10 - 2||6 - 35|
(hexagonal compression type)
|2 - 0000 (4/0)||35 - 120|
|Brazed terminals MB/BY series||10 - 0000 (4/0)||6 - 120|

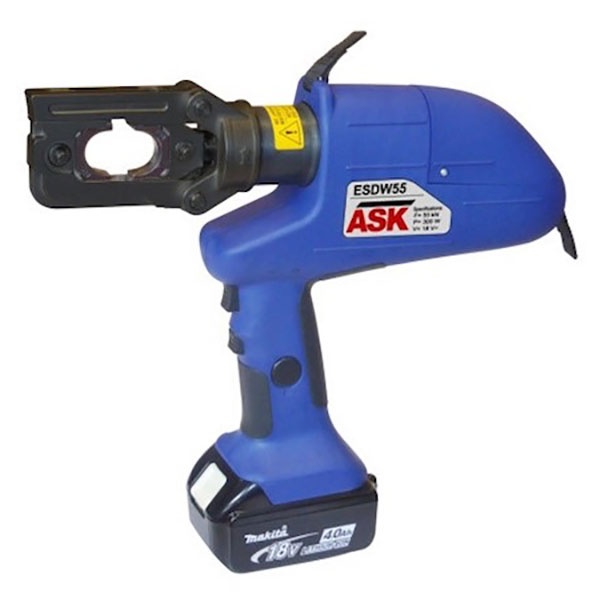

Crimping tool .................................. PN : ESDW55
2 batteries 18 V / 4 Ah .................... PN : BL1840
Charger 110 V................................. PN : CLM1890HC
Metallic carry case........................... PN : CMESDW55
(space for 12 sets D5 + 7 sets D5MR)
180° swiveling head.
The head is easy to open and the dies simple to change.
Comfortable and accurate handling thanks to the shape and the materials used in the handle.
Optimum ergonomics thanks to the balance of the tool. Can be used by right or left-handed people.
The USB interface enables the tool usage data to be downloaded thanks to the software CT Diag.
With this software, it is possible to configure the tool, record the crimping data and analyze the cycles already done.
Lithium-ion 18 V battery with increased life expectancy and without any memory effect.
Service indicator lights inform about the battery charge level and working order of the tool.
PN: CMESD50 / CMESDC60 / CMESC120 / CMESU137
Ideal for transport and storage.
Adapted to each model.
For hexagonal dies, punches and other compression
Li-Ion technology without memory effect
Charger with display that identifies the state of the battery and the conditions of the load.
Lightest tool in the industry.
Most crimps per battery charge in the industry.
Uses standard Makita Lithium-ion 18 V battery.
Double integrated speed means more cycles per charge.
2-stage hydraulic pump with pilot-operated valve increases battery charge duration by 20% to 40%.
2-stage hydraulic pump with pilot-operated valve increases crimp speed by 20% to 40%.
User defined programming allows;
Software allows configuration of tool settings.
Software provides crimping data for performance analysis
Visit www.ASK-Power.com for compatible compression terminals
