    Compare Ranges of TTD Connectors

    TTD_Connectors

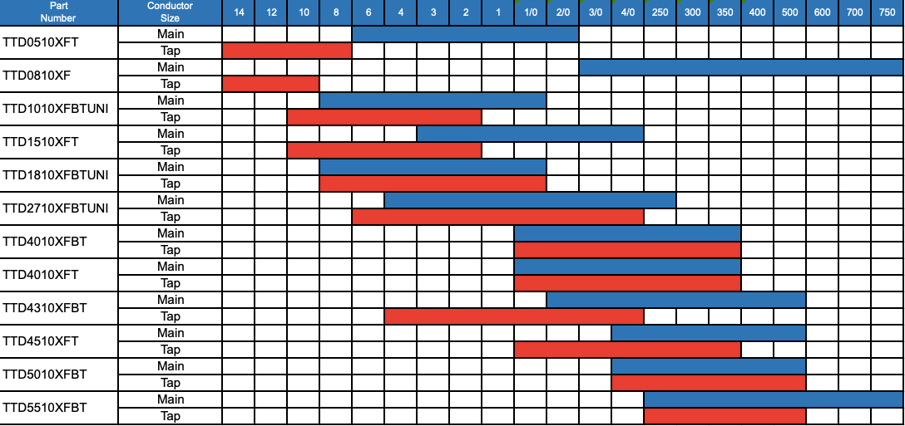

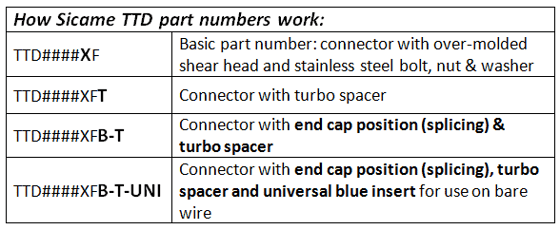

    TTD Naming Chart

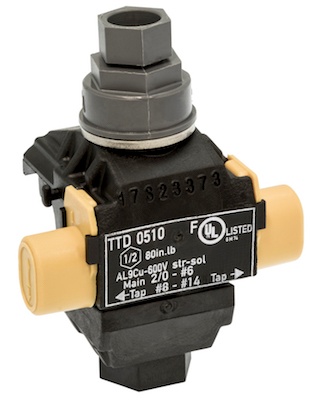

    Product ID: TTD0510XFT

    Torque in Inch lb.: 80
    Bolt Head Size: 1/2
    Qty Per Box: 12 (box quantities can't be broken up)
    Dimensions: 3.6H x 1.7W x 2.7L
    TTD0510XFT

    Conductor Range
    Main AWG: 2/0 - 6
    Tap AWG: 8 - 14

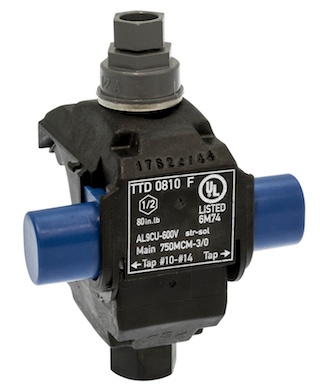

    Product ID: TTD0810XF

    Insulation Piercing Connector
    Torque in Inch lb.: 80
    Bolt Head Size: 1/2
    Qty Per Box: 12 (box quantities can't be broken up)
    Dimensions: 4.3H x 2.4W x 2.8L
    TTD0810XF
    Conductor Range
    Main AWG: 750 - 3/0
    Tap AWG: 10 - 14

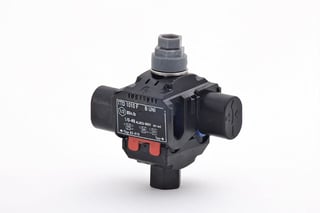

    Product ID: TTD1010XFBTUNI

    Insulation Piercing Connector
    Torque in Inch lb.: 80
    Bolt Head Size: 1/2
    Qty Per Box: 12 (box quantities can't be broken up)
    Dimensions: 3.7H x 2.0W x 3.0L


     Conductor Range
    Main AWG: 1/0 - 8
    Tap AWG: 2 - 10

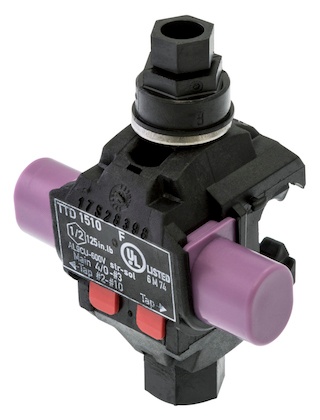

    Product ID: TTD1510XFT

    Insulation Piercing Connector
    Torque in Inch lb.: 125
    Bolt Head Size: 1/2
    Qty Per Box: 12 (box quantities can't be broken up)
    Dimensions: 3.9H x 1.7W x 2.7L
    TTD1510XFT
    Conductor Range
    Main AWG: 4/0 - 3
    Tap AWG: 2 - 10

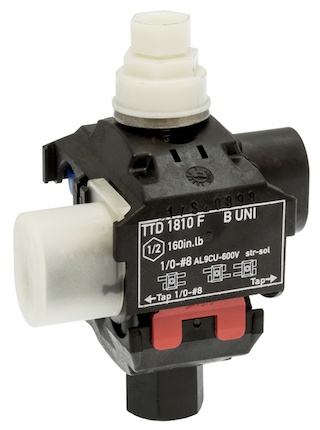

    Product ID: TTD1810XFBTUNI

    Insulation Piercing Connector
    Torque in Inch lb.: 125
    Bolt Head Size: 1/2
    Qty Per Box: 12 (box quantities can't be broken up)
    Dimensions: 3.7H x 2.0W x 3.0L
    TTD1810
    Conductor Range
    Main AWG: 1/0 - 8
    Tap AWG: 1/0 - 8

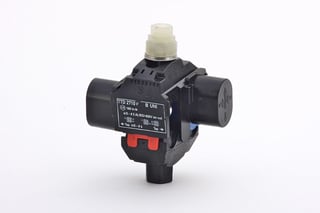

    Product ID: TTD2710XFBTUNI

    Insulation Piercing Connector
    Torque in Inch lb.: 160
    Bolt Head Size: 1/2
    Qty Per Box: 12 (box quantities can't be broken up)
    Dimensions: 4.4H x 2.4W x 3.2L
    Conductor Range
    Main AWG: 250 - #4
    Tap AWG: 4/0 - #6


    Product ID: TTD4010XFBT

    Insulation Piercing Connector
    Torque in Inch lb.: 330
    Bolt Head Size: 5/8
    Qty Per Box: 4 (box quantities can't be broken up)
    Dimensions: 5.4H x 3.1W x 5.0L
    Conductor Range
    Main AWG: 350 - 1/0
    Tap AWG: 350 - 1/0

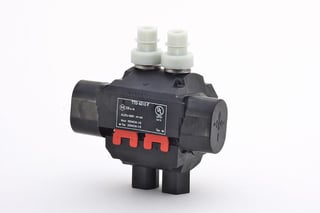

    Product ID: TTD4010XFT

    Insulation Piercing Connector
    Torque in Inch lb.: 330
    Bolt Head Size: 5/8
    Qty Per Box: 4 (box quantities can't be broken up)
    Dimensions: 5.4H x 3.1W x 5.0L
    Conductor Range
    Main AWG: 350 - 1/0
    Tap AWG: 350 - 1/0

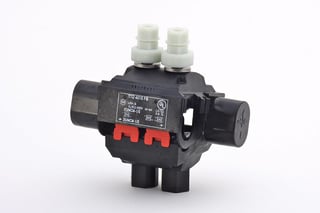

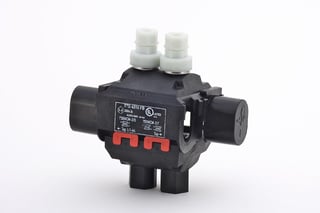

    Product ID: TTD4310XFBT*

    Insulation Piercing Connector
    Torque in Inch lb.: 330
    Bolt Head Size: 5/8
    Qty Per Box: 4 (box quantities can't be broken up)
    Dimensions: 5.4H x 3.1W x 5.0L
    Conductor Range
    Main AWG: (500) 350 - 2/0
    Tap AWG: 4/0 - 4

    *End cap on main side must be removed to reach maximum wire size shown in parenthesis


    Product ID: TTD4510XFT

    Insulation Piercing Connector
    Torque in Inch lb.: 330
    Bolt Head Size: 5/8
    Qty Per Box: 4 (box quantities can't be broken up)
    Dimensions: 5.4H x 3.0W x 5.0L
    Conductor Range
    Main AWG: 500 - 4/0
    Tap AWG: 350 - 1/0

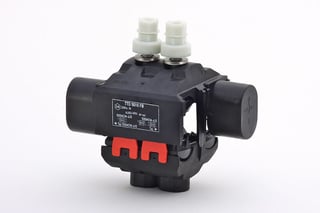

    Product ID: TTD5010XFBT

    Insulation Piercing Connector
    Torque in Inch lb.: 330
    Bolt Head Size: 5/8
    Qty Per Box: 4 (box quantities can't be broken up)
    Dimensions: 5.6H x 3.6W x 5.7L
    Conductor Range
    Main AWG: 500 - 4/0
    Tap AWG: 500 - 4/0

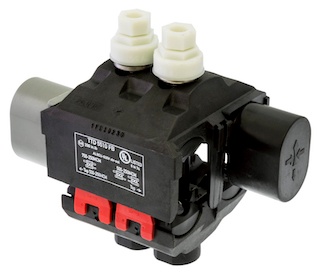

    Product ID: TTD5510XFBT*

    Insulation Piercing Connector
    Torque in Inch lb.: 330
    Bolt Head Size: 5/8
    Qty Per Box: 4 (box quantities can't be broken up)
    Dimensions: 5.6H x 3.6W x 5.7L
    TTD5510XFBT
    Conductor Range
    Main AWG: (750) 500 - 250
    Tap AWG: 500 - 250

    *End cap on main side must be removed to reach maximum wire size shown in parenthesis

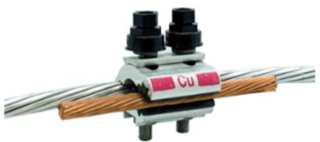

    Product ID: RDAU

    Bi-metallic PG connectors for LV/MV
    RDAU
    • RDAU 95-10     Main AWG: 3/0 - #5     Tap AWG: #13 - #8
    • RDAU 95-35     Main AWG: 3/0 - #5     Tap AWG: #9 - #2
    • RDAU 95-50     Main AWG: 3/0 - #5     Tap AWG: #9 - #1
    • RDAU 95-120   Main AWG: 3/0 - #5     Tap AWG: #1 - 4/0
    • RDAU 150-50   Main AWG: 300 - #3    Tap AWG: #9 - #1
    • RDAU 150-95   Main AWG: 300 - #3    Tap AWG: #5 - 3/0
    • RDAU 240-95   Main AWG: 477 - 3/0   Tap AWG: #7 - 3/0

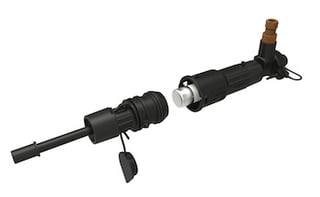

    Product ID: FT35SCO

    Configurable service cut-out fuse holder Live-On-load connected up to 63Amps
     ft35sco-ouvert_2015_photo_rvb

    Product ID: KIT FTC25SCO 2L300N 10A

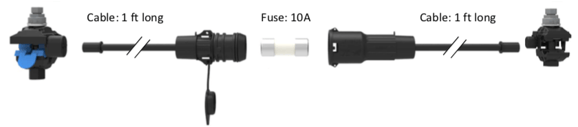

    Fused protection kits for street lighting and servicing applications. Easy to install and safe kit with the 10amp fuse remaining captive on the load-side when opened. Comes pre-assembled with 1’ whips, contains two insulation piercing connectors, and provides a water-tight connection.
     Kit_Whip
