Mechanical Repair Splices - Medium Voltage Overhead

Product ID: MTRS-01

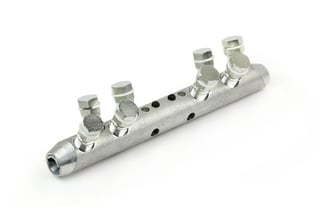

Mechanical Tension Repair Splice - #4 - 1/0 AWG
The MTRS01 is a mechanical shear bolt connector for both slack spans and tensioned cables. It can be used on bare Aluminum AAC/AAAC/ACSR conductor from #4 – 1/0 AWG.


Product ID: MTRS-02

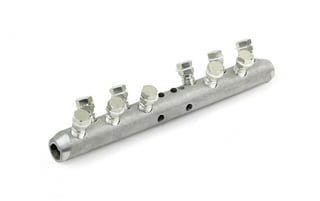

Mechanical Tension Repair Splice- 1/0 - 4/0 AWG
The MTRS02 is a mechanical shear bolt connector for both slack spans and tensioned cables. It can be used on bare Aluminum AAC/AAAC/ACSR conductor from 1/0 – 4/0 AWG.


Product ID: MTRS-03

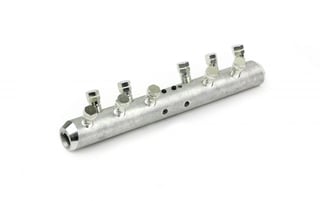

Mechanical Tension Repair Splice- 3/0 - 370 kcmil
The MTRS03 is a mechanical shear bolt connector for both slack spans and tensioned cables up to 10,000 lbs. It can be used on bare Aluminum AAC/AAAC/ACSR/ACAR conductor from 3/0 - 370 AWG.


Product ID: MTRS-04

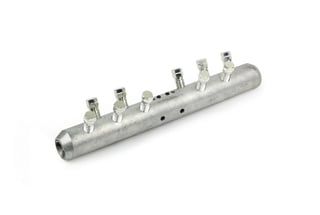

Mechanical Tension Repair Splice- 330 - 636 kcmil
The MTRS04 is a mechanical shear bolt connector for both slack spans and tensioned cables up to 10,000 lbs. It can be used on bare Aluminum AAC/AAAC/ACSR/ACAR conductor from 330 – 636 AWG.


Product ID: MTRS-05

Mechanical Tension Repair Splice- 500 - 795 kcmil
The MTRS05 is a mechanical shear bolt connector for both slack spans and tensioned cables. It can be used on bare Aluminum AAC/AAAC/ACSR/ACAR conductor from 500 – 795 AWG.


Insulation Piercing Connectors and Bails

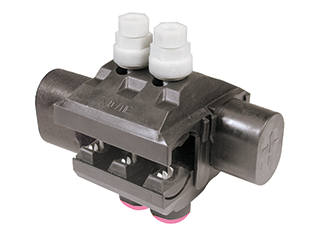

Product ID: TTDC454010FBA

Torque in Inch lb.: 220
Bolt Head Size: 5/8
Qty Per Box: 3 (box quantities can't be broken up)
Conductor Range for 15kV
Main AWG: 4/0 - 1/0
Tap AWG: 4/0 - 1/0


Product ID: TTDC455010FB

Torque in Inch lb.: 330
Bolt Head Size: 5/8
Qty Per Box: 3 (box quantities can't be broken up)
Conductor Range for 15kV
Splicing
Main AWG: 397 - 3/0
Tap AWG: 397 - 3/0
Tapping
Main AWG: 477 - 3/0
Tap AWG: 397 - 3/0


Product ID: TTDC454310FBA

Torque in Inch lb.: 220
Bolt Head Size: 5/8
Qty Per Box: 3 (box quantities can't be broken up)
Conductor Range for 15kV
Tapping Only
Main AWG: 4/0 - 1/0
Tap AWG: 1/0 - #2


Product ID: TTDC455310FA

Torque in Inch lb.: 330
Bolt Head Size: 5/8
Qty Per Box: 3 (box quantities can't be broken up)

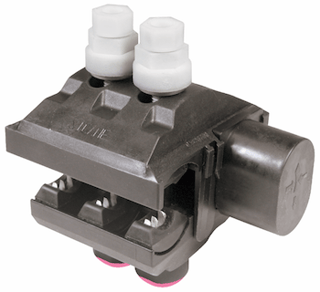

TTDC4553-1
Conductor Range for 15kV
Tapping Only
Main AWG: 477 - 3/0
Tap AWG: 3/0 - 2


Product ID: TTDC505010FP2A

Torque in Inch lb.: 220
Bolt Head Size: 5/8
Qty Per Box: 3 (box quantities can't be broken up)

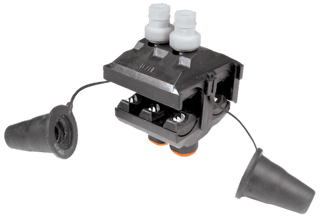

TTDC505010FP2A
Conductor Range for 15kV
Splicing and Tapping
Main AWG: 477 - 4/0
Tap AWG: 477 - 4/0


Product ID: CD13AMG80

Torque in Inch lb.: Main: 400, Tap: 160
Bolt Head Size: 7/8, Tap: 1/2

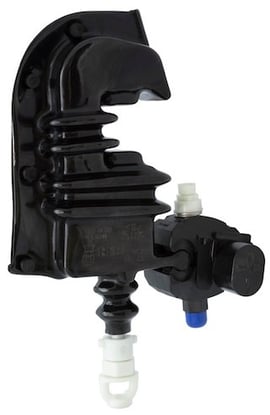

CD13-2
Conductor Range for 25kV and 35kV
Main AWG: 556.5 - 4/0
Tap AWG: 4/0 - 1/0


Product ID: BI95U

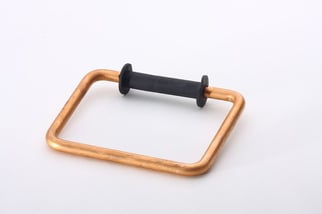

4/0 Copper Bail for use with TTDC
* Also available in aluminum


Product ID: BI95U-2

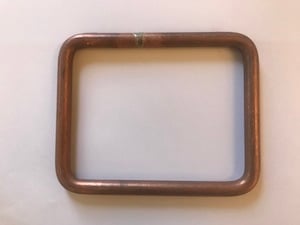

4/0 Copper Bail for use with CD13AMG80
BI95U-2
