Insulation Piercing Connectors and Copper Bail

Medium Voltage Overhead

NEWS: Transmission and Distribution Magazine has highlighted our TTDC connector line with the article Spacer Systems Get a New Connector - A new insulation piercing connector is created through a research and development program, followed by utility trials.

Product ID: TTDC454010FBA

Torque in Inch lb.: 220
Bolt Head Size: 5/8
Qty Per Box: 3 (box quantities can't be broken up)

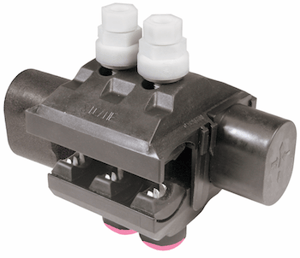

TTDC4540
Conductor Range for 15kV
Main AWG: 4/0 - 1/0
Tap AWG: 4/0 - 1/0



Product ID: TTDC455010FB

Torque in Inch lb.: 330
Bolt Head Size: 5/8
Qty Per Box: 3 (box quantities can't be broken up)
Conductor Range for 15kV
Splicing
Main AWG: 397 - 3/0
Tap AWG: 397 - 3/0
Tapping
Main AWG: 477 - 3/0
Tap AWG: 397 - 3/0


Product ID: TTDC455310FA

Torque in Inch lb.: 330
Bolt Head Size: 5/8
Qty Per Box: 3 (box quantities can't be broken up)

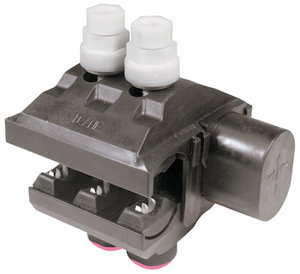

TTDC4553
Conductor Range for 15kV
Tapping Only
Main AWG: 477 - 3/0
Tap AWG: 3/0 - 2


Product ID: TTDC454310FBA

Torque in Inch lb.: 220
Bolt Head Size: 5/8
Qty Per Box: 3 (box quantities can't be broken up)
Conductor Range for 15kV
Tapping Only
Main AWG: 4/0 - 1/0
Tap AWG: 1/0 - #2


Product ID: TTDC505010FP2A

Torque in Inch lb.: 220
Bolt Head Size: 5/8
Qty Per Box: 3 (box quantities can't be broken up)

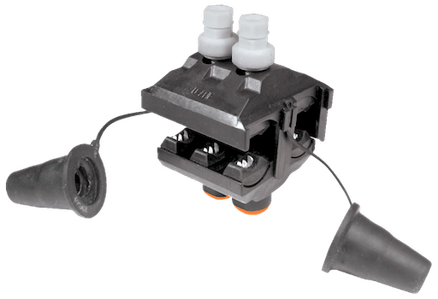

TTDC505010FP2A
Conductor Range for 15kV
Splicing and Tapping
Main AWG: 477 - 4/0
Tap AWG: 477 - 4/0


Product ID: CD13AMG80

Torque in Inch lb.: Main: 400, Tap: 160
Bolt Head Size: 7/8, Tap: 1/2

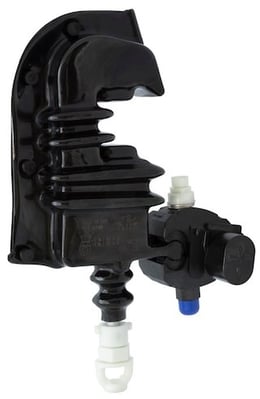

CD13-2
Conductor Range for 25kV and 35kV
Main AWG: 556.5 - 4/0
Tap AWG: 4/0 - 1/0

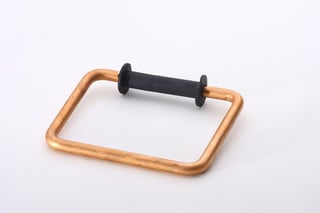

Product ID: BI95U

4/0 Copper Bail for use with TTDC
* Also available in aluminum

Product ID: BI95U-2

4/0 Copper Bail for use with CD13AMG80

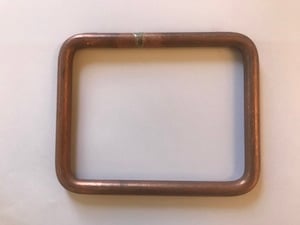

BI95U-2
