In-Line Connectors - Medium Voltage Underground

Installation Video of Straight (In-Line) and "Y" Type Connectors

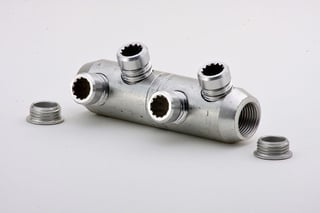

Product ID: USMF-1

Mechanical Splice Connector

Standard Core Size
Min: #2 AWG
Max: 250 kcmil

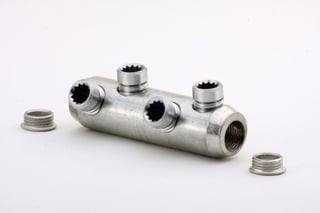

Product ID: USMF-1-C

Mechanical Splice Connector

Standard Core Size
Min: #2 AWG
Max: 250 kcmil

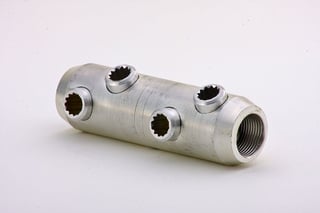

Product ID: USMF-2

Mechanical Splice Connector

Standard Core Size
Min: 2/0 AWG
Max: 500 kcmil


Product ID: USMF-2-C-B2

Mechanical Splice Connector

Standard Core Size
Min: 2/0 AWG
Max: 500 kcmil


Product ID: USMF-3

Mechanical Splice Connector

Standard Core Size
Min: 500 kcmil
Max: 1000 kcmil

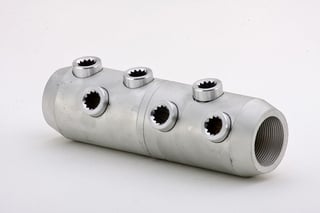

Product ID: USMF-3-C

Mechanical Splice Connector

Standard Core Size
Min: 500 kcmil
Max: 1000 kcmil


Product ID: USMF-3-C-B2

Mechanical Splice Connector

Standard Core Size
Min: 500 kcmil
Max: 1000 kcmil

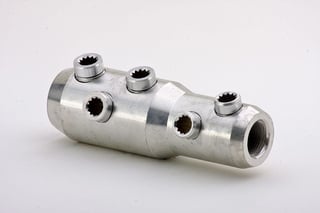

Product ID: USMF-4

Mechanical Splice Connector

Standard Core Size
Min: 1/0
Max: 500 kcmil

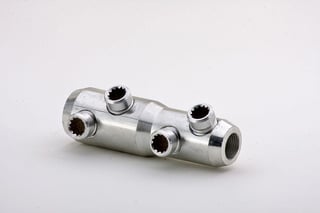

Product ID: USMF-5

Mechanical Splice Connector

Standard Core Size
Min: #2 AWG
Max: 250 kcmil

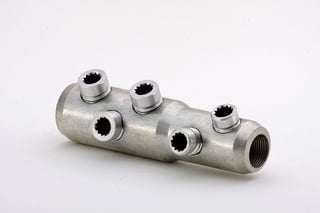

Product ID: USMF-6

Mechanical Splice Connector

Standard Core Size
Min: 4/0
Max: 350 kcmil

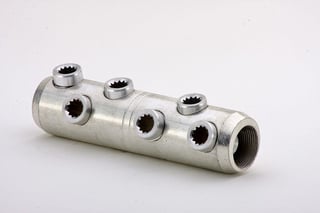

Product ID: USMF-7

Mechanical Splice Connector

Standard Core Size
Min: 350 kcmil
Max: 750 kcmil

Product ID: USMF-8

Mechanical Splice Connector

Standard Core Size
Min: 800 kcmil
Max: 1250 kcmil

Product ID: USMF-9-C-B2

Mechanical Splice Connector

Standard Core Size
Min: 350 AWG
Max: 750 kcmil
