Termination Connectors - Medium Voltage Underground

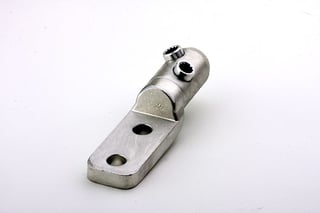

    Product ID: LVML/1-2H

    Mechanical Termination
    Standard Core Size
    Min: #2 AWG
    Max: 250 kcmil

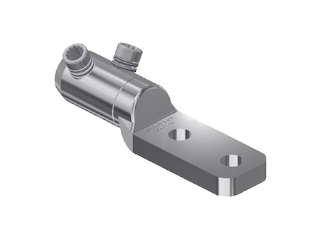

    Product ID: LVML/2-2H

    Mechanical Termination
    Standard Core Size
    Min: 4/0
    Max: 500 kcmil

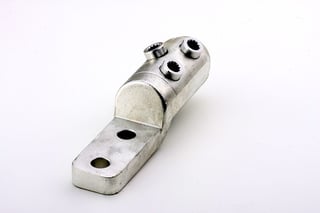

    Product ID: LVML/3A-2H

    Mechanical Termination
    Standard Core Size
    Min: 500 kcmil
    Max: 1000 kcmil

    * The body of this connector is narrower to allow mounting side to side on the bus bar.

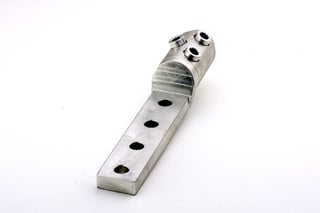

    Product ID: LVML/3-4H

    Mechanical Termination
    Standard Core Size
    Min: 500 kcmil
    Max: 1000 kcmil

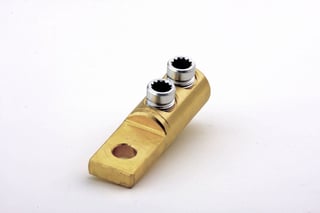

    Product ID: HVTM1/1-12-B

    Mechanical Termination of Stranded and Solid Connectors
    General Range
    Sector Stranded: 16-120 mm²
    Sector Stranded: 16-95 mm²
    Circular Stranded: 16-120 mm²
    Circular Solid: 16-185 mm²

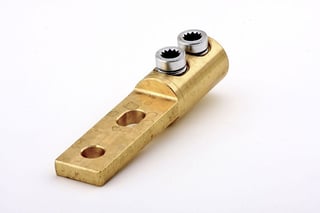

    Product ID: HVTM1/2-2H-B

    Mechanical Termination of Stranded and Solid Connectors
    General Range
    Sector Stranded: 16-185 mm²
    Sector Stranded: 16-150 mm²
    Circular Stranded: 16-120 mm²
    Circular Solid: 16-185 mm²


    "Y" Connectors - Medium Voltage Underground

    Installation Video of Straight (In-Line) and "Y" Type Connectors

    Product ID: USMB/DE

    Mechanical 'Y' Connector

    Standard Core Size
    Min: 350 kcmil
    Max: 750 kcmil


    Product ID: USMB/DE-C

    Mechanical 'Y' Connector

    Standard Core Size
    Min: 350 kcmil
    Max: 750 kcmil


    Product ID: USMB/FPL

    Mechanical 'Y' Connector

    Standard Core Size
    Min: #3 AWG
    Max: 350 kcmil


    Product ID: USMB/FPL-C

    Mechanical 'Y' Connector

    Standard Core Size
    Min: #3 AWG
    Max: 350 kcmil


    Product ID: USMB/FPL-2

    Mechanical 'Y' Connector

    Standard Core Size
    Min: 350 kcmil
    Max: 750 kcmil
    Min: #3 AWG
    Max: 350 kcmil


    Product ID: USMB/FPL-3

    Mechanical 'Y' Connector

    Standard Core Size
    Min: 500 kcmil
    Max: 1000 kcmil
    Min: #3 AWG
    Max: 350 kcmil


    Product ID: USMB/FPL-4

    Mechanical 'Y' Connector

    Standard Core Size
    Min: 2/0 AWG
    Max: 500 kcmil


    Product ID: USMB-5

    Mechanical 'Y' Connector

    Standard Core Size
    Min: 500 kcmil
    Max: 1000 kcmil


    Medium Voltage Underground - Mechanical 'H' Connectors

    Product ID: USMH/FPL-1

    Mechanical 'H' Connector
    Standard Core Size
    Min: #3 AWG
    Max: 350 kcmil


    Product ID: USMH/FPL-2

    Mechanical 'H' Connector
    Standard Core Size
    Min: 350 kcmil
    Max: 750 kcmil


    Product ID: USMH/FPL-3

    Mechanical 'H' Connector
    Standard Core Size
    Min: 500 kcmil
    Max: 1000 kcmil


    Product ID: USMH/FPL-4

    Mechanical 'H' Connector
    Standard Core Size
    Min: 500 kcmil
    Max: 1000 kcmil

    In-Line Connectors - Medium Voltage Underground

    Installation Video of Straight (In-Line) and "Y" Type Connectors

    Product ID: USMF-1

    Mechanical Splice Connector

    Standard Core Size
    Min: #2 AWG
    Max: 250 kcmil

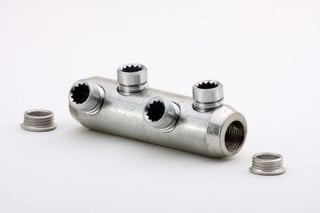

    Product ID: USMF-1-C

    Mechanical Splice Connector

    Standard Core Size
    Min: #2 AWG
    Max: 250 kcmil


    Product ID: USMF-2

    Mechanical Splice Connector

    Standard Core Size
    Min: 2/0 AWG
    Max: 500 kcmil


    Product ID: USMF-2-C-B2

    Mechanical Splice Connector

    Standard Core Size
    Min: 2/0 AWG
    Max: 500 kcmil


    Product ID: USMF-3

    Mechanical Splice Connector

    Standard Core Size
    Min: 500 kcmil
    Max: 1000 kcmil

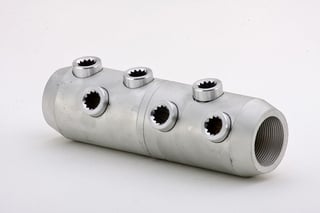

    Product ID: USMF-3-C

    Mechanical Splice Connector

    Standard Core Size
    Min: 500 kcmil
    Max: 1000 kcmil


    Product ID: USMF-3-C-B2

    Mechanical Splice Connector

    Standard Core Size
    Min: 500 kcmil
    Max: 1000 kcmil


    Product ID: USMF-4

    Mechanical Splice Connector

    Standard Core Size
    Min: 1/0
    Max: 500 kcmil


    Product ID: USMF-5

    Mechanical Splice Connector

    Standard Core Size
    Min: #2 AWG
    Max: 250 kcmil


    Product ID: USMF-6

    Mechanical Splice Connector

    Standard Core Size
    Min: 4/0
    Max: 350 kcmil


    Product ID: USMF-7

    Mechanical Splice Connector

    Standard Core Size
    Min: 350 kcmil
    Max: 750 kcmil

    Product ID: USMF-8

    Mechanical Splice Connector

    Standard Core Size
    Min: 800 kcmil
    Max: 1250 kcmil

    Product ID: USMF-9-C-B2

    Mechanical Splice Connector

    Standard Core Size
    Min: 350 AWG
    Max: 750 kcmil



    Splice Kits - Medium Voltage



    Product ID: JUPRF Splice Kit- #2 - 2/0


    All-in-One Coldshrink Splice Kit for #2 - 2/0 (Includes USMF-1 Connector)
    Key Features- Tool Free Installation, EPDM Material, Re-positionable, Self-extracting Tubes
    AVAILABLE OPTIONS

    Voltage Rating - 15kV, 25kV, and 35kV
    Grounding Strap - Without, Fully Integrated, or Provided Separately
    Sock Rating - >1/0 or <1/0

    *Passes IEEE 404


    Product ID: JUPRF Splice Kit- 3/0 - 500


    All-in-One Coldshrink Splice Kit for 3/0 - 500 (Includes USMF-2 Connector)
    Key Features- Tool Free Installation, EPDM Material, Re-positionable, Self-extracting Tubes
    AVAILABLE OPTIONS

    Voltage Rating - 15kV, 25kV, and 35kV
    Grounding Strap - Without, Fully Integrated, or Provided Separately
    Sock Rating - >1/0 or <1/0

    *Passes IEEE 404


    Product ID: JUPRF Splice Kit- 500 - 1000


    All-in-One Coldshrink Splice Kit for 500 - 1000 (Includes USMF-3 Connector)
    Key Features- Tool Free Installation, EPDM Material, Re-positionable, Self-extracting Tubes
    AVAILABLE OPTIONS

    Voltage Rating - 15kV, 25kV, and 35kV
    Grounding Strap - Without, Fully Integrated, or Provided Separately
    Sock Rating - >1/0 or <1/0

    *Passes IEEE 404


    Medium Voltage Underground Repair Sleeves

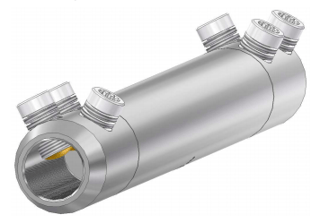

    Product ID: USMF1/RS

    Mechanical Repair Sleeve
    General Range: #2 – 250 kcmil




    Product ID: USMF2/RS

    Mechanical Repair Sleeve
    General Range: 1/0 – 500 kcmil




    Product ID: USMF3/RS

    Mechanical Repair Sleeve
    General Range: 500-1000 KCMIL




    Product ID: USMF7/RS

    Mechanical Repair Sleeve
    General Range: 350 – 750 kcmil




    Connector Tools - Medium Voltage Underground



    Product ID: JTS/9

    Universal Screw Socket
    1/2" square drive


    Product ID: JTS/11

    Universal Screw Extractor
    1/2" square drive


    Product ID: JTS/22 BR

    Insulated Holding Tool






    Termination Connectors

    Download Product Documentation

























































































































    "Y" Connectors

    Download Product Documentation







































































































































































































    Mechanical 'H' Connectors
    Download Product Documentation

































































    In-Line Connectors
    Download Product Documentation





























































































































































































































































































































































































































































    Repair Sleeves
    Download Product Documentation























































    Connector Tools
    Download Product Documentation
